Rapid PCB panelization and more!
With Macaos Gallery you can quickly and easily:
- Import and view a PCB from Gerber/Drill or ODB++ files
- Add symbols and markings to the mask layers
- Add peel-off, paste mask and glue mask layers
- Step up a board to an assembly array (panel) with one click
- Create a solder paste stencil for a board or panel

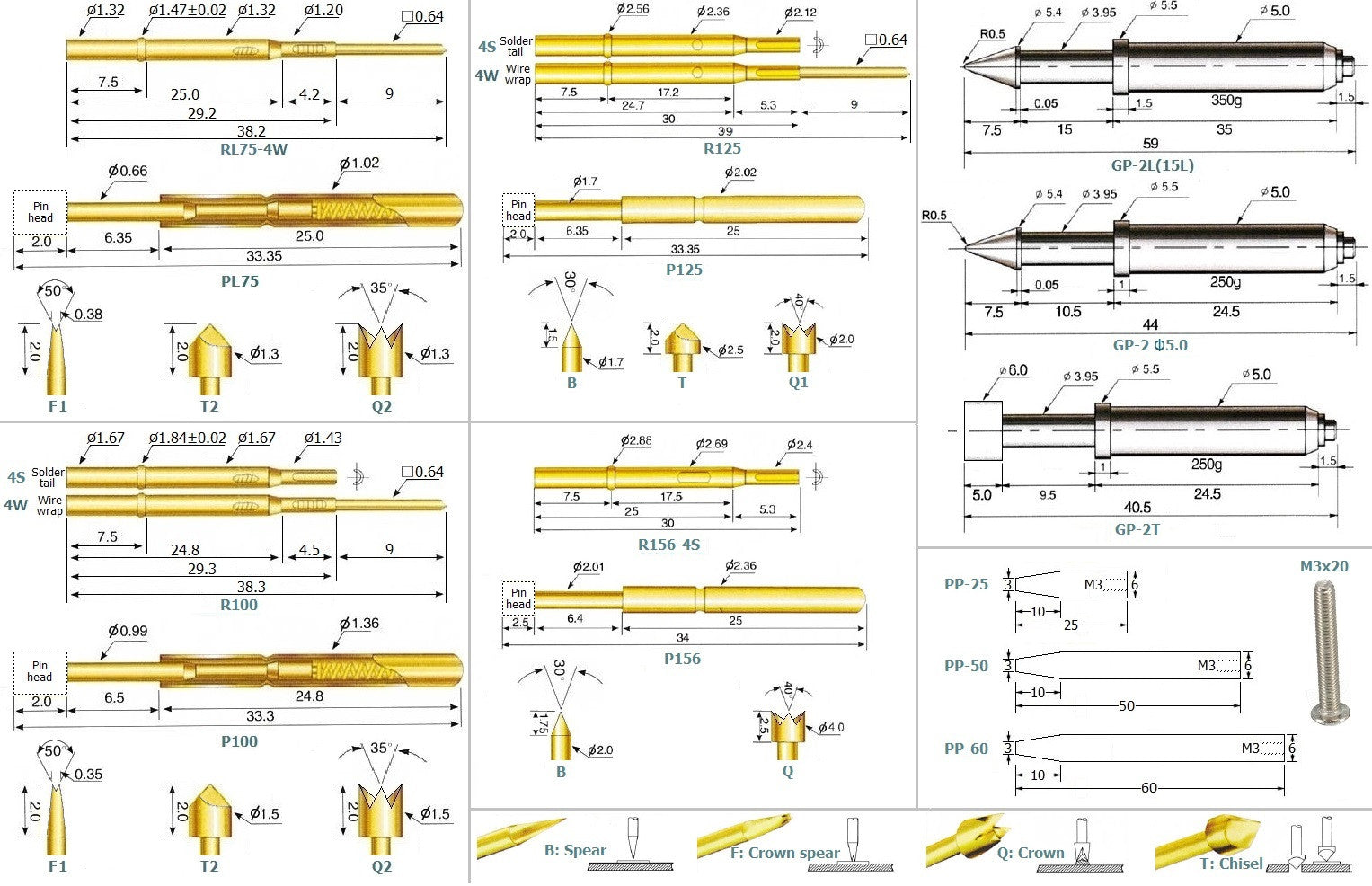

- Create a "Bed of Nails" test fixture for a board
- Generate PDF documentation of layers, stackup and panelization
